Web interface

The FOXDEN web interface is simple and intuitive. Here we’ll walk you through its main components.

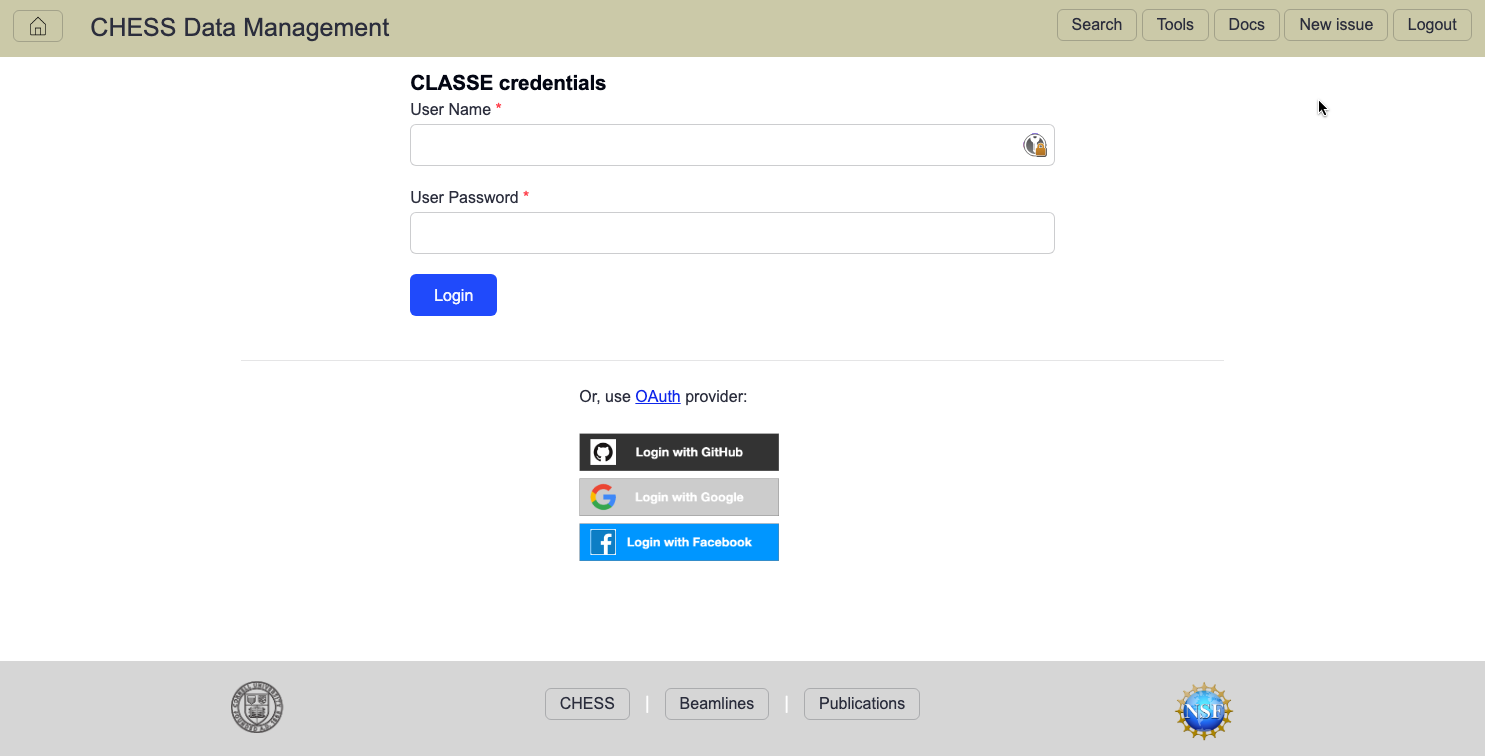

Login page

When you first time login to FOXDEN server you will be prompted to provide your CHESS Kerberos credentials. Please note FOXDEN does not store them anywhere and only obtain a valid kerberos ticket using your credentials and create associated token.

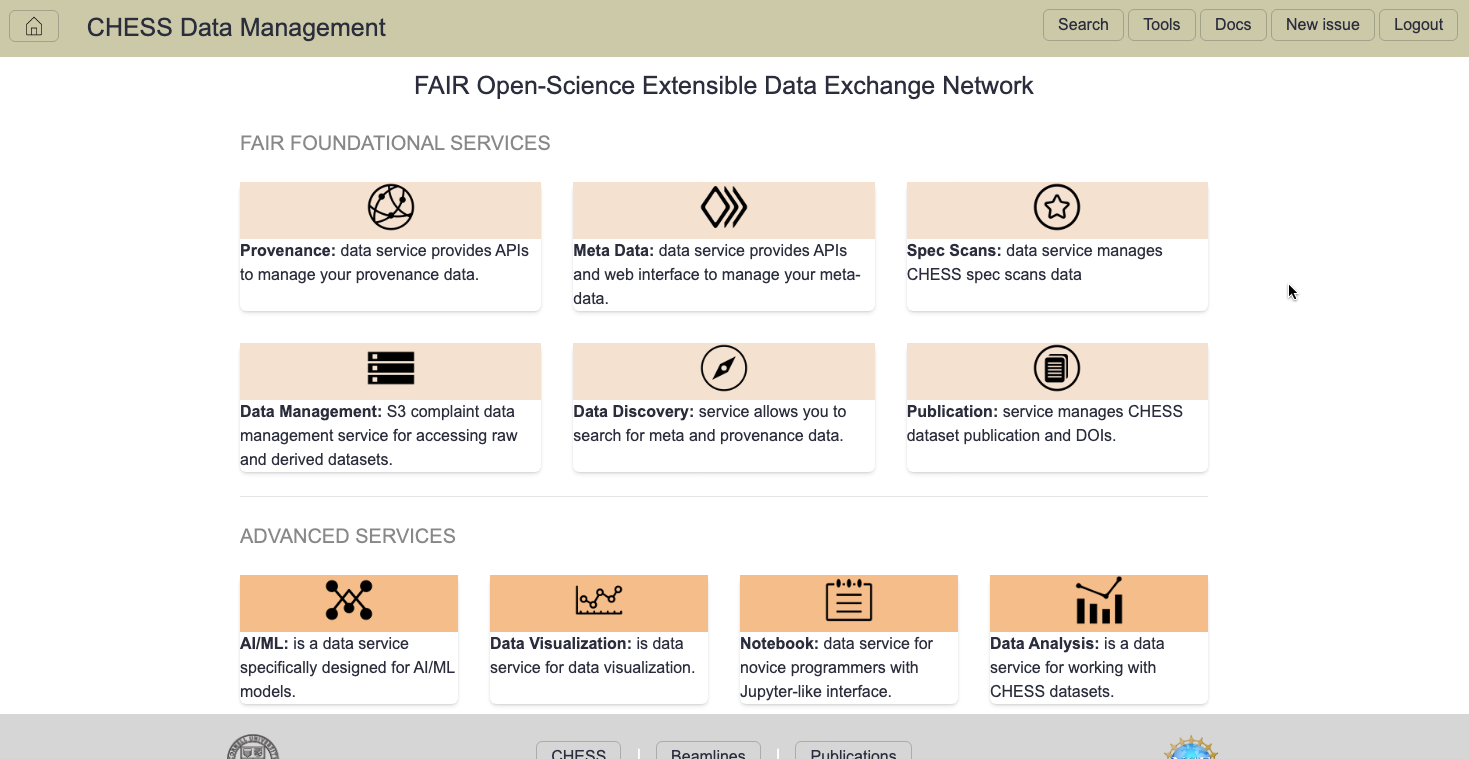

Main page

The FOXDEN main page contains set of widgets to naviate your through FOXDEN services. If you are CHESS user who only need to look at (meta|provenance) data you will only need a Discovery page. For other use cases please navigate to appropriate FOXDEN service.

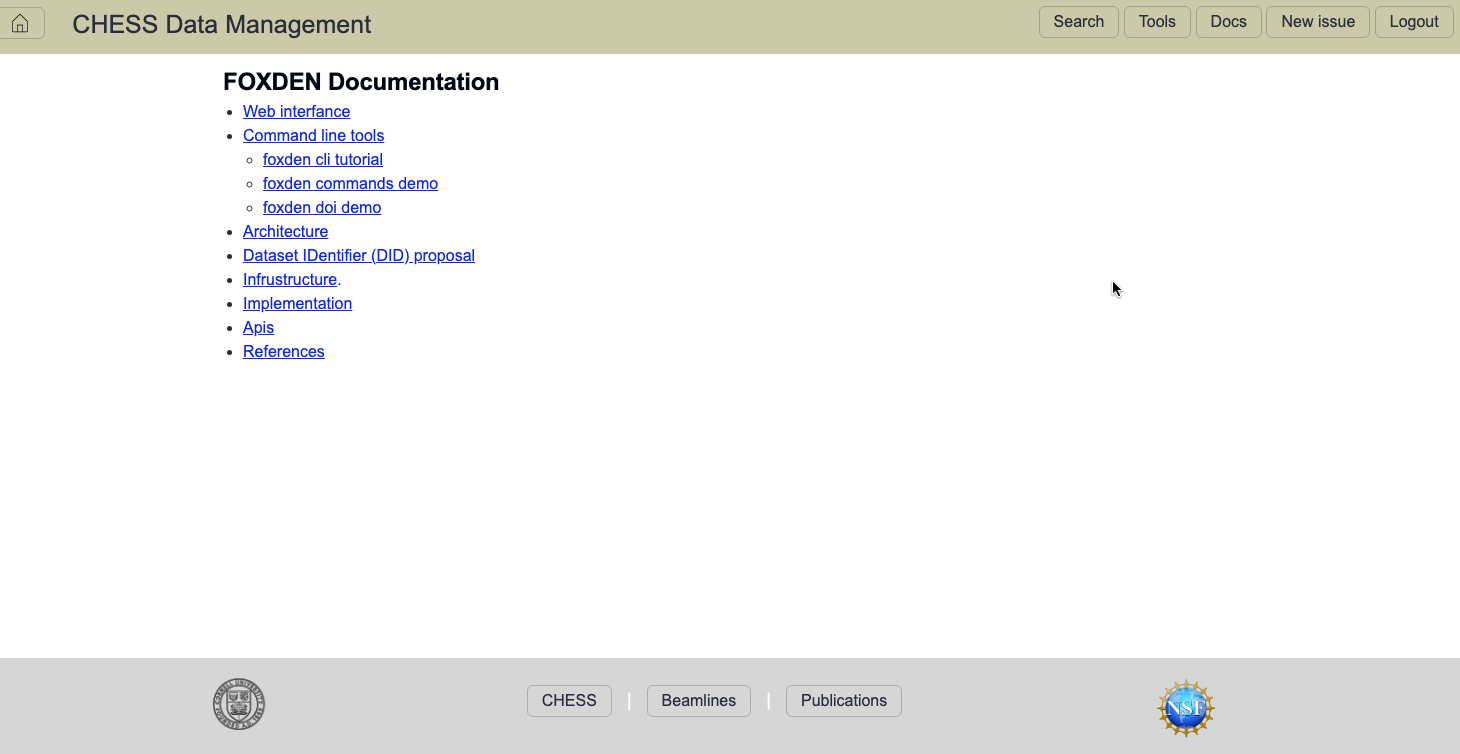

Documentation page

The FOXDEN documentation page is very well organized and provide enough materials to get you started.

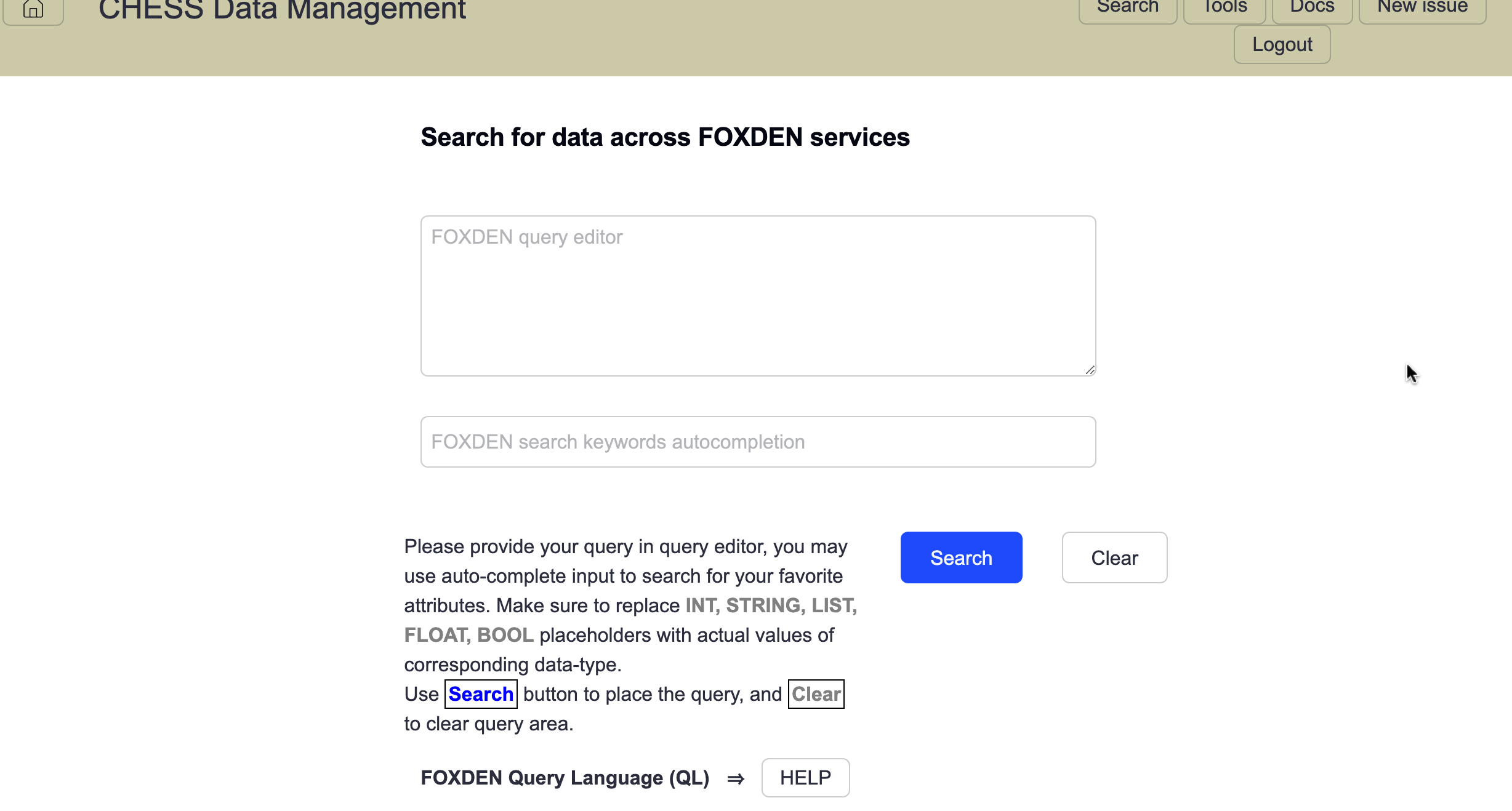

FOXDEN search

FOXDEN search interface page allows user to search for the favorite FOXDEN (meta|provenance) data records using either key-value pairs, or fully featured FOXDEN Query Language (QL):

The FOXDEN search interface consists of two pars:

• FOXDEN query editor
• FOXDEN search keywords autocompletion

In former one you may place your JSON query, the later allows you to search for FOXDEN keys and compose your query.

Please use HELP button to get more examples. It will show you the following:

# fetch all records
{}

The above query will look up all records in FOXDEN using {} query.

# search for specific key:value pair where "key" is your record key
# and "123" is your record value (can be any data-type):
{"btr":"3731-b"}
or use multiple conditions
{"beam_energy": 41.1, "btr": "3731-b"}

In this case only records which match provided conditions will be shown.

The query language also supports variety of mathematical operations like:

• support for greater/less then conditions:

  # search for specific condition using operators:
  {"atten_thickness": {"$gt": 3}}


• support for regular expression patterns:

  # search using regex patterns:
  {"did":{"$regex":"/beamline=3a/btr=3731-b.*"}}


• and combinations of the above queries

  # make complex queries
  {
   "did":{"$regex":"/beamline=3a/btr=3731-b.*"},
   "beam_energy": 41.1,
   "atten_thickness": {"$gt": 3}
  }


  For more information about used query language please use MongoDB QL.

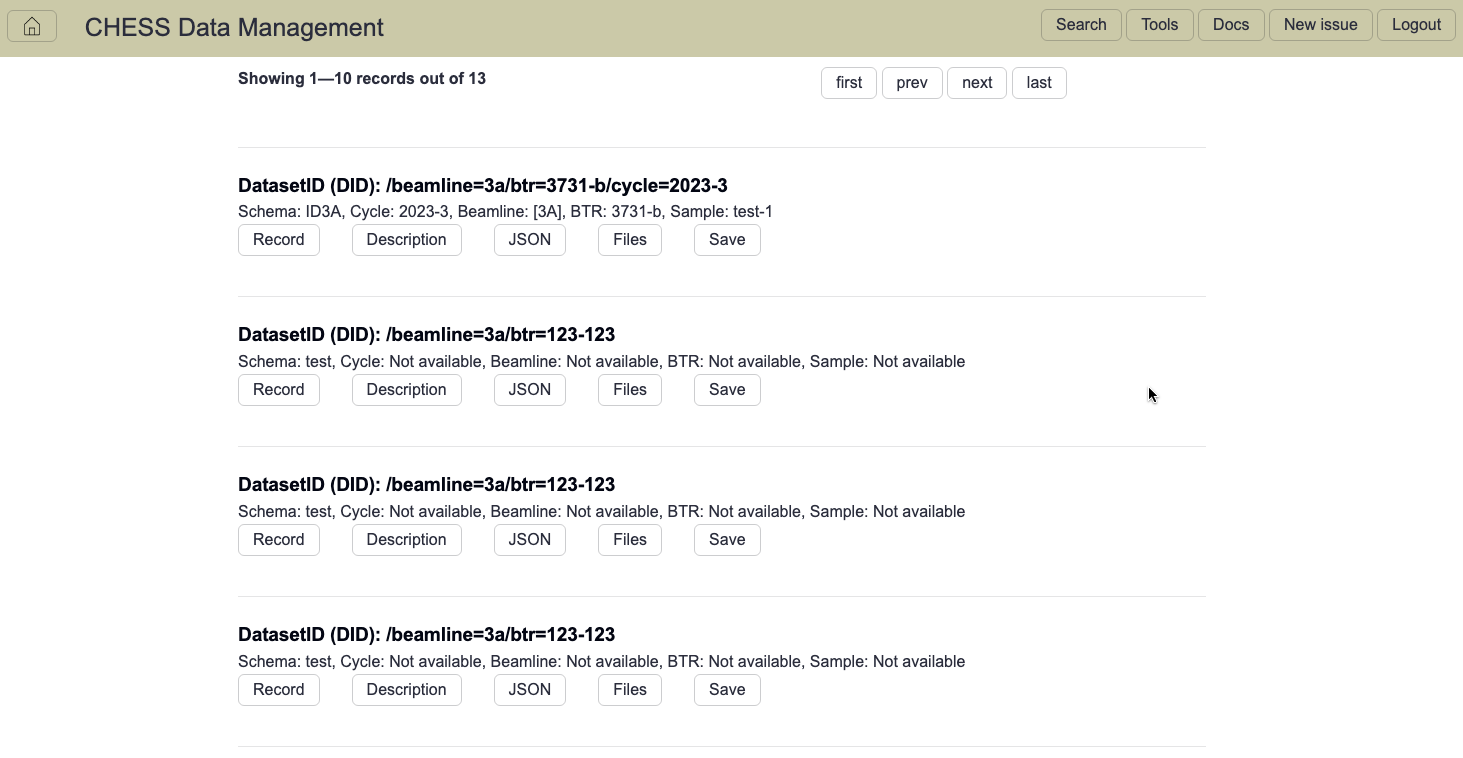

Once you found what you want you will be redirected to FOXDEN records page. This page may contain one or more records reflected to your search query.

FOXDEN records

Each record can be viewed in different forms:

• tabular format to see table like key:value pairs
• desciption format to provide you information about meaning of each key
• and JSON data-format for you to grab and go on

Below you can see examples of each invidual record representation:

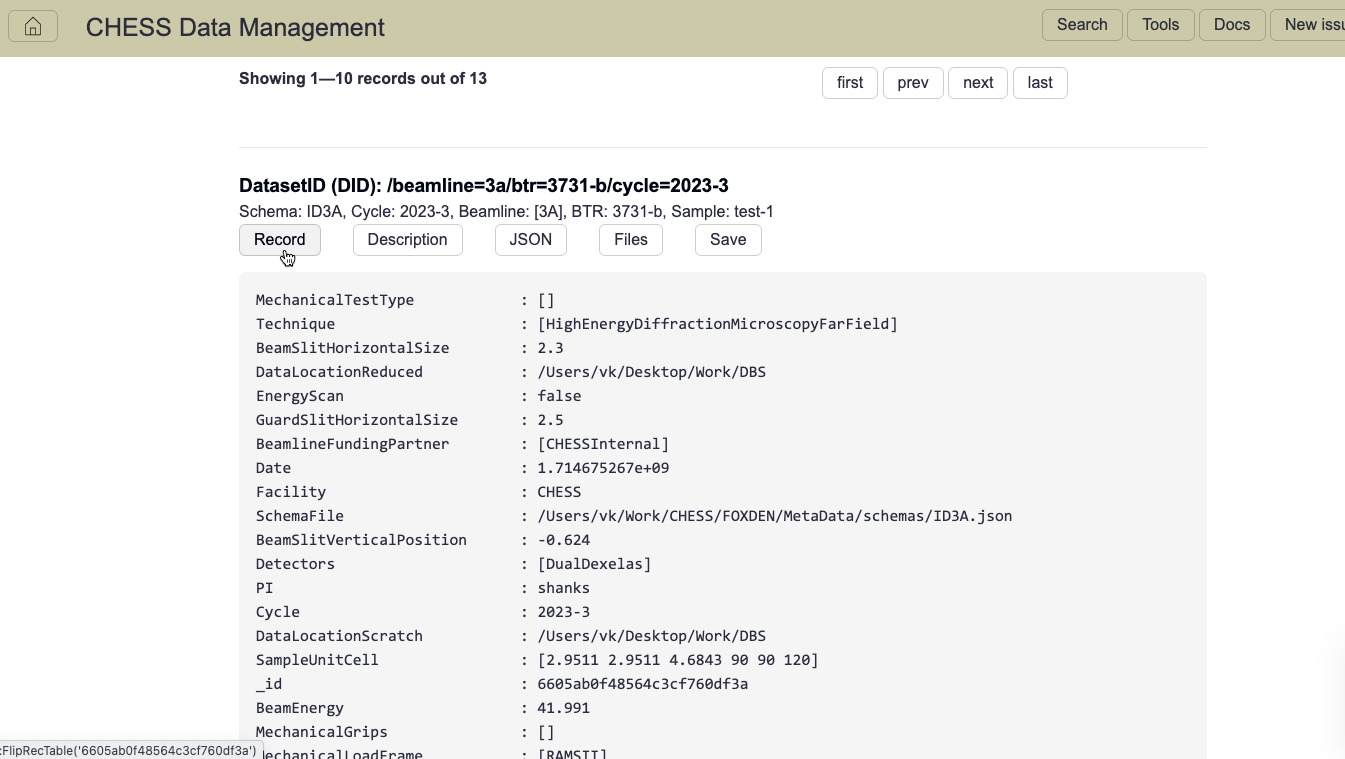

Record tabular format

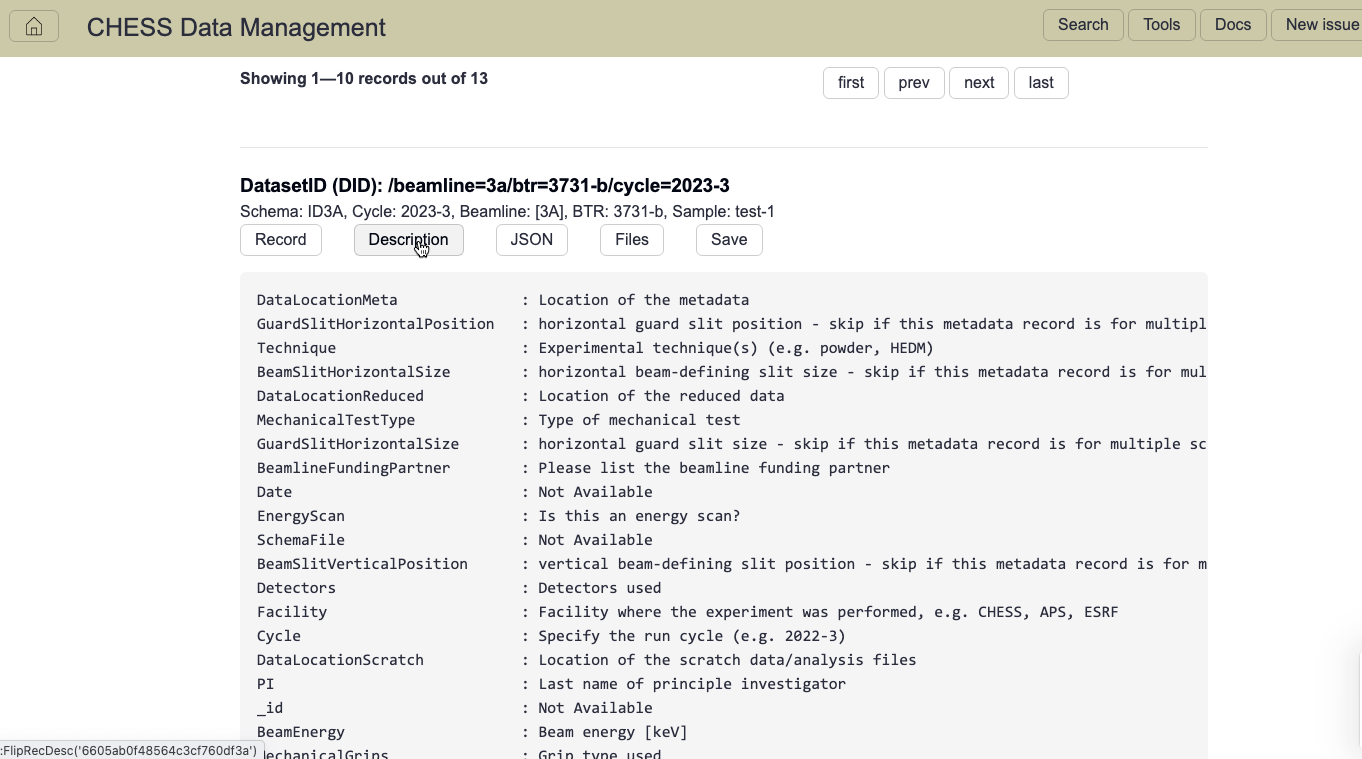

Record record description

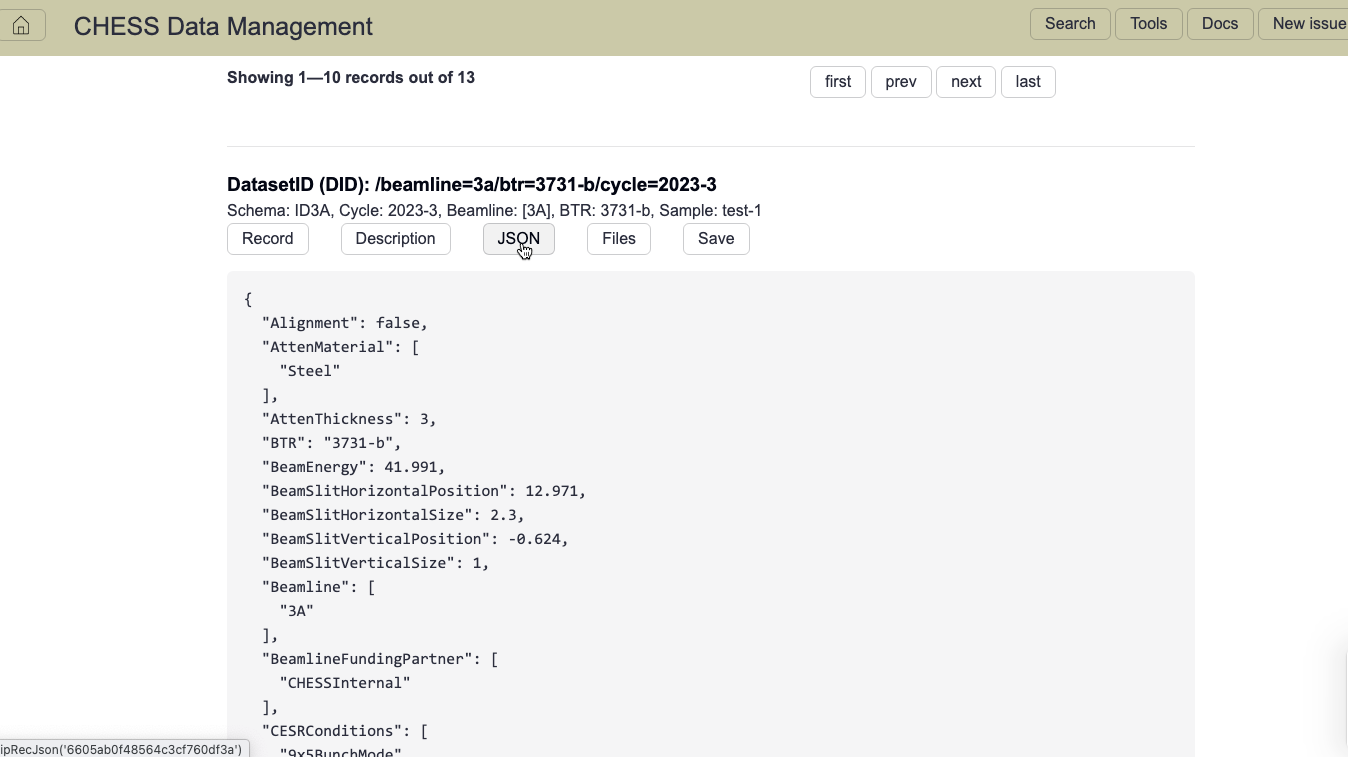

Record JSON format
